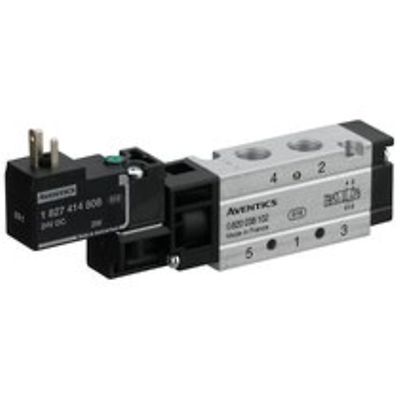

AVENTICS™ 5/2-directional valve, Series WV02 0820038103

Activation

Electrically

Nominal flow Qn

500 l/min

Switching principle

5/2

Compressed air connection output

G 1/8

Working pressure min.

2 bar

Working pressure max

10 bar

DC operating voltage

24 V

Voltage tolerance DC

-10% / +10%

Manual override

without detent

Electrical connection type

Plug

Electrical connection size

ISO 15217, form C

Sealing principle

Soft Seal

Pilot

Internal

Pilot valve width

15 mm

Valve type

Spool valve, positive overlapping

Connection type

Pipe connection

Return

with spring/air spring return

Control pressure min.

2 bar

Control pressure max.

10 bar

Min. ambient temperature

0 °C

Max. ambient temperature

50 °C

Min. medium temperature

0 °C

Max. medium temperature

60 °C

Medium

Compressed air

Max. particle size

5 µm
