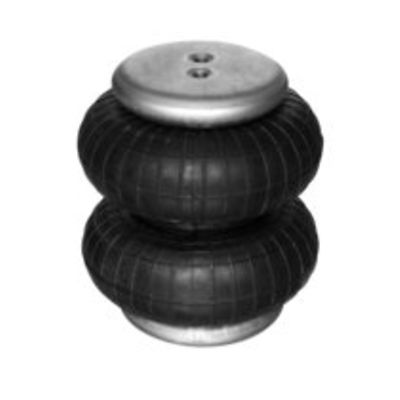

AVENTICS™ Series BCP 0822419043

Bellows

double

Type

Bellow actuator with cover

Functional principle

Single-acting, retracted without pressure

Compressed air connection

G 3/4

Cover diameter

161 mm

Permissible angle of tilt max.

20 °

Max. effective stroke

165 mm

Min. radial installation space

250 mm

Installation height, min.

75 mm

Installation height, max.

240 mm

Force min.

7700 N

Force max.

20000 N

Working pressure min.

0 bar

Working pressure max

8 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

70 °C

Medium

Compressed air

Reduced service life at a temperature greater than

50 °C

Pressure for determining forces

6 bar

Weight

3 kg

Material bellow

caoutchouc/butadiene caoutchouc

Material front cover

Steel, chrome-plated

Surface cover

galvanized
