Tescom-P-m6a

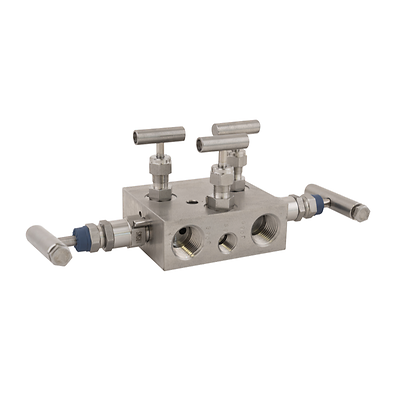

TESCOM™ Anderson Greenwood Instrumentation Series M6A Differential Pressure Manifolds

Contact Sales
Request Quote
Consult an Expert

Product Description

Five valve manifolds with a 3/16” (4.8mm) orifice for differential pressure natural gas services to 6000 psig (414 barg)

Products

Search
1-10 of 26 results for Products
:
M6AEIS-4-AMS
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6AEIS-4-AMS
Max Pressure
6000 psig
Body Material
316SS
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6AHES-4
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6AHES-4
Max Pressure
6000 psig
Body Material
316SS
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6AHIS-4
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6AHIS-4
Max Pressure
6000 psig
Body Material
316SS
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6AHIS-4-AM
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6AHIS-4-AM
Max Pressure
6000 psig
Body Material
316SS
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6AHIS-4-AMS
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6AHIS-4-AMS
Max Pressure
6000 psig
Body Material
316SS
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6ARDC-4
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6ARDC-4
Max Pressure
3000 psig
Body Material
Carbon Steel
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
Carbon Steel
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6ARDS-4
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6ARDS-4
Max Pressure
3000 psig
Body Material
316SS
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
316SS
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6ARDS-4-SG
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6ARDS-4-SG
Max Pressure
3000 psig
Body Material
316SS
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
316SS
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6AVDC-4
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6AVDC-4
Max Pressure
3000 psig
Body Material
Carbon Steel
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
Carbon Steel
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
M6AVDS-4
TESCOM™ Anderson Greenwood Instrumentation Series M6A Instrument Manifold M6AVDS-4
Max Pressure
3000 psig
Body Material
316SS
Orifice
3/16"
Connections
1/2" FNPT Inlet X 1/2" FNPT Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
3000 psig
316SS
3/16"
1/2" FNPT Inlet X 1/2" FNPT Outlet
ADD TO CART
ADD TO WORKSPACE
1
1 2 3
1-10 of 26 results

Features

  • Easy Installation in meter tubing with no additional support generally required.
  • Upstream or downstream ¼” FNPT ports for connecting the static pressure to the meter.
  • Hard or field-replaceable soft seats for bubble-tight performance in abrasive applications.
  • Bonnet-to-body and stem threads isolated from process corrosion - important in sour gas applications.
  • Stem backout prevention eliminates accidental removal while under pressure.
  • FKM O-ring with PTFE back-up ring standard stem packing with long life assured by mirror finish stem in the packing area.
  • Integral hard back seat forms a secondary seal for the stem threads when valve is fully opened.
  • Rolled stem threads increase strength and extend life.
