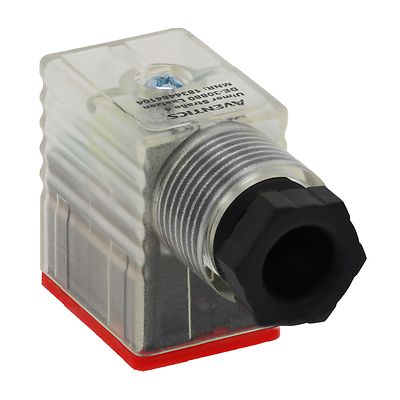

AVENTICS™ Valve plug connector, series CON-VP, Form B, 24 V AC/DC 1834484104

Type

Valve plugs

Connection type

Screws

min. suitable cable Ø

4 mm

max. suitable cable Ø

8 mm

Connector standard

EN 175301-803, form B, unshielded

with LED

Yellow

Min. ambient temperature

-40 °C

Max. ambient temperature

90 °C

Max. current

1.5 A

Protection class

IP67

Protective circuit

2 Z-diodes

Operational↩voltage

24 V AC/DC

Electrical connection 1, type

Socket

Electrical connection 1, thread size

EN 175301-803, form B

Electrical connection 1, number of poles

2+E

Cable exit

angled

Cable exit angle

90°

Mounting screw tightening torque

0.4 Nm

Housing material

Polyamide

Seal material

Silicone caoutchouc
