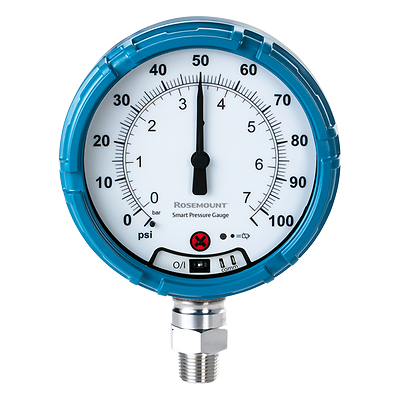

Rosemount™ Smart Pressure Gauge
Product Description
The Rosemount Smart Pressure Gauge features a robust design with industry-proven sensor technology to resist common traditional gauge failures. This pressure gauge provides up to 10 years of maintenance-free operation and replaces mechanical components for more reliable readings and a higher overpressure limit.
Products
1-2 of 2 results for Products
Product List
[
{
"catentry_id" : "3074457345647030686",
"Attributes" : { }
}
]
[
{
"catentry_id" : "3074457345629317168",
"Attributes" : { }
}
]
{ searchResult: {
pageSize: 23,
searchTerms: '',
totalPageNumber: 1.0,
totalResultCount: 2,
currentPageNumber:1,
attributes: ""
}
}
Specifications
- Measurement Range
- Up to 4,000 psi (275.8 bar) Gage, Up to 10,000 psi (689.5 bar) Absolute
- Display/Interface
- 4.5 in. (114 mm)
- Housing Material
- Engineered polymer, NEMA® 4X, and IP66/67
- Burst Pressure
- 11,000 psi (758.4 bar), 26,000 psi (1,792.6 bar) for scale ranges above 4,000 psi (275.8 bar)
- Overpressure Protection
- Up to 150 times scale range
- Max. Operating Temperature
-
Ambient: -40 to 185° F (-40 to 85° C)
Process: -40 to 250° F (-40 to 121° C)
- Certifications/Approvals
- Hazardous location, see full specs for complete list of certifications
Features
- Sensor technology replaces mechanical parts to offer up to 10 years of maintenance-free operation
- Provides overpressure protection for reliable pressure readings
- Dual layers of process isolation delivers plant and personnel safety
- Local status indication confirms proper gauge operation
- Engineered with a large 4.5-in. (114 mm) face for easy field visibility
- Full range of process connections are available, including male-NPT, DIN, manifolds and seal assemblies
