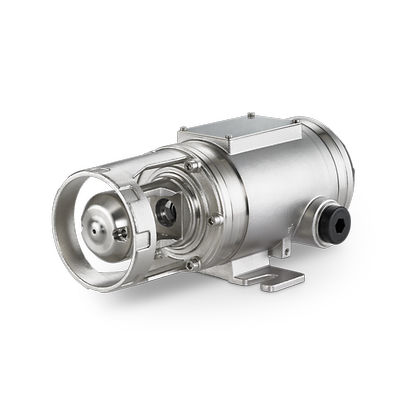

Rosemount™ 625IR Fixed Gas Detector

Configure

Request Quote

Learn About

ADD TO WORKSPACE

Product Description

The Rosemount 625IR Fixed Gas Detector provides ultra-fast response times to detect hydrocarbon gases before they can create dangerous situations. Using optical absorption detection technology, the gas detector transmits infrared light through a sapphire lens and reflects light back again to determine gas concentration. Available with a range of options and accessories to improve accuracy inside ducts, provide greater installation flexibility, protect from environmental impacts and more.

Specifications

Measurement Type: Hydrocarbon gases: 0-100% LEL

Sensor Type: Optical absorption infrared sensor

Output: Current source or sink 4-20 mA HART^® digital communication

Enclosure Rating: IP66/67 and NEMA^® 4X

Temperature Range: Storage: -76 to +185 °F (-60 to +85 °C)Operating: -40 to +167 °F (-40 to +75 °C), standard

Accuracy: ±2 percent full scale (FS); The accuracy is specified for room temperature, +77 °F (+25 °C).

Power Consumption: < 3 W average, standard configuration

Weight: 6.6 lb (3 kg)

Warranty: Five (5) year limited warranty

Certifications/Approvals: SIL2 rated in accordance with IEC61508, SIL3 rated when used in 1oo2 configuration
North American - Class 1, Division 1, Groups B, C and D
ATEX/IECEx - Ex db ib IIC T5 Gb

Features

Ultra-fast response times
Calibrated for life, reducing maintenance and complexity
Best-in-class performance specifications
Multi-coloured status indicator LED at front of gas detector
Heated optics to disperse any moisture on optical surfaces
Duct versions of the Rosemount 625IR Fixed Gas Detector are available in two lengths – 15 cm (5.9 in) and 35 cm (13.8 in)
Range of accessories available to help protect the gas detector from environmental impacts, offer installation flexibility and more
