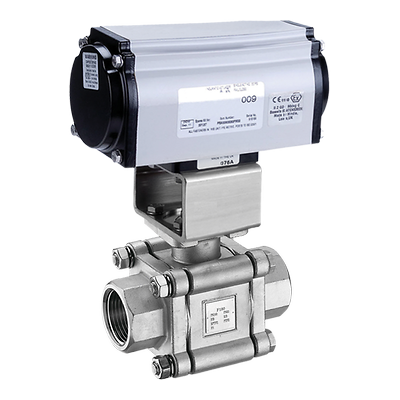

K-Ball Figure 180 Floating Ball Valve with Powered Actuator

Descrizione del prodotto

The K-Ball Figure 180 is a three-piece heavy duty floating ball valve complete with powered actuator, configurable by power source, size, function and more.

Contatta l'ufficio commerciale

Ulteriori informazioni

Aggiungi a spazio di lavoro

Funzionalità

Valvola a sfera flottante K-Ball Serie 182

Doppia tenuta albero
Valvola a sfera in tre pezzi per servizi gravosi
Flangia di montaggio ISO 5211
Corpo in acciaio al carbonio o acciaio inox
Disponibilità di diverse opzioni per il materiale della sede
Design a bulloni completamente incassati
Design a passaggio pieno e ridotto
Disponibilità di diverse opzioni per il materiale della sede
Albero antistatico con dispositivo antiespulsione
Tenuta in accordo a EN 12266-1, Categoria A e API 598
Configurazione a prova di fiamma testata ad API 607 7a edizione/ISO 10497:2010

Emerson Powered Actuator

Direct mounting to all Keystone butterfly valves and ball valves.
Valve connection compatible with Keystone (imperial and metric) and ISO 5211.
Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.
Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).
Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.
Double acting and spring return versions available for cost effective and safe operation.
Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.
Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.
