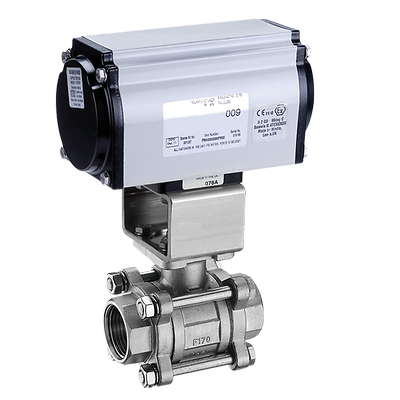

K-Ball Figure 171 Floating Ball Valve with Powered Actuator

Descrizione del prodotto

The K-Ball Figure 171 is a three-piece high purity clean floating ball valve complete with powered actuator, configurable by power source, size, function and more.

Contatta l'ufficio commerciale

Ulteriori informazioni

Aggiungi a spazio di lavoro

Funzionalità

Valvola a sfera flottante KBall Serie 172

Costruzione flottante in tre pezzi
Corpo e coperchio terminale da fusione a cera persa
Disponibile con materiali del corpo in acciaio al carbonio (WCB/1.0619) e acciaio inossidabile (CF8M/1.4408)
Albero con dispositivo antiespulsione
Dispositivo di blocco
Tenuta in accordo a EN 12266-1, Categoria A e API 598
Saldatura in testa, saldatura a innesto e filettatura estremità a BSPP, BSPT e NPT

Emerson Powered Actuator

Direct mounting to all Keystone butterfly valves and ball valves.
Valve connection compatible with Keystone (imperial and metric) and ISO 5211.
Double Rack and Pinion design nullifies side loads on the pinion shaft, minimizing bearing wear and extending life.
Optimized product flow with standard mounted travel stops for valve position adjustment in open and close position (+/- 5° at each end).
Anodized aluminium body with electrostatic powder coating (ESPC) finish provides durable protection against corrosive environments.
Double acting and spring return versions available for cost effective and safe operation.
Up to 12 individual springs offer flexible torque range for both ball as butterfly valves.
Pre-compressed spring design and anti-blowout drive pinion means safe maintenance and operation.
