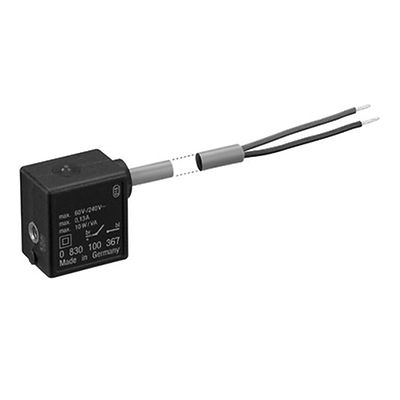

AVENTICS™ Sensor, Series SN2 0830100367

Indirect mounting for series

TRB, PRA, ITS, MNI, CSL-RD, ICM, RPC, TRR, FLT, CVI

Version

Heat resistant

Cable

with cable

Type of contact

Reed

Switching capacity

10 W / 10 VA

Protection class

IP67

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Voltage drop U at Imax

2,1 V + I*Rs

Protective resistor for reed

27 Ω

DC switching current, max.

0.13 A

AC switching current, max.

0.13 A

Switching point precision

±0,1 mT

LED status display

Yellow

Electrical connection 2, type

without wire end ferrule, tin-plated

Electrical connection 2, number of poles

2-pin

Operating voltage DC, min.

12 V DC

Operating voltage DC, max.

60 V DC

Operating voltage AC, min.

12 V AC

Operational voltage AC, max.

240 V AC

Short circuit resistance

Protected against polarity reversal

Shock resistance

50 g / 11 ms

Vibration resistance

30 g (50 - 1000 Hz)

Cable length L

3 m

Housing material

Polyamide
