Tescom-P-mc-mt

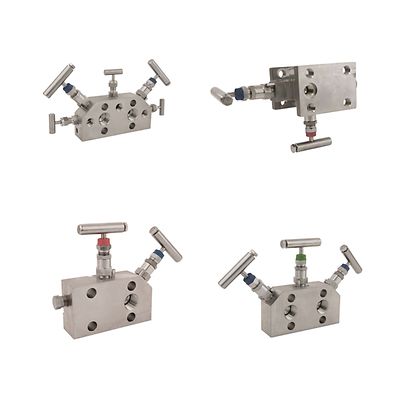

TESCOM™ Anderson Greenwood Instrumentation Series MC/MT Differential Pressure Manifolds

Contact Sales
Request Quote
Consult an Expert

Product Description

A range of 2, 3 and 5 valve integral manifolds to be used with Rosemount® Coplanar™ style transmitters for static and differential pressure applications

Products

Search
1-10 of 66 results for Products
:
MC2HIC-2
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2HIC-2
Max Pressure
6000 psig
Body Material
Carbon Steel
Orifice
0.156" / 0.136"
Connections
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
Carbon Steel
0.156" / 0.136"
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2HIC-4
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2HIC-4
Max Pressure
6000 psig
Body Material
Carbon Steel
Orifice
0.156" / 0.136"
Connections
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
Carbon Steel
0.156" / 0.136"
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2HIS-2
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2HIS-2
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.156" / 0.136"
Connections
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.156" / 0.136"
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2HIS-2-SG
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2HIS-2-SG
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.156" / 0.136"
Connections
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.156" / 0.136"
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2HIS-4
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2HIS-4
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.156" / 0.136"
Connections
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.156" / 0.136"
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2HIS-4-AM
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2HIS-4-AM
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.156" / 0.136"
Connections
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.156" / 0.136"
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2HPS-4-XP
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2HPS-4-XP
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.156" / 0.136"
Connections
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.156" / 0.136"
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2HPS-4-XP-AM
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2HPS-4-XP-AM
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.156" / 0.136"
Connections
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.156" / 0.136"
1/2"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2VIS-2
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2VIS-2
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.156" / 0.136"
Connections
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.156" / 0.136"
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
MC2VIS-2-SG
TESCOM™ Anderson Greenwood Instrumentation Series MC2 Instrument Manifold MC2VIS-2-SG
Max Pressure
6000 psig
Body Material
316SS
Orifice
0.156" / 0.136"
Connections
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
availability
Max Pressure
Body Material
Orifice
Connections
availability
6000 psig
316SS
0.156" / 0.136"
1/4"FNPT Inlet x Integral CoPlanar Flange Outlet
ADD TO CART
ADD TO WORKSPACE
1
1 2 3 4 5 6 7
1-10 of 66 results

Features

  • Compatible with Rosemount® Coplanar™ style pressure transmitter models 3051C, 3051P, 2024 and 3095 Multivariable™.
  • Ball end stems eliminate seat galling, provide bubble-tight shutoff and long life. Hardened, non-rotating balls ensure perfectly aligned closure.
  • Packing below threads prevents lubricant washout, thread corrosion, process contamination and eliminates galling.
  • Easily adjustable PTFE packing decreases replacement downtime and increases valve life.
  • Dust covers protect stems from lubricant contamination.
  • Safety back seating prevents stem blowout or accidental removal and provides a metal-to-metal secondary stem seal while in the fully open position.
  • ENC plated 316 SS stems prevent galling or freezing of stem threads.
  • Rolled stem and bonnet threads provide additional strength.
  • Mirror stem finish in the packing areas provides smooth operation and extends packing life.
  • Metal-to-metal body-to-bonnet seals in constant compression prevent bonnet thread corrosion, eliminate possible tensile breakage and give a reliable seal.
  • Bonnet lock pins prevent accidental separation from the body while enabling easy maintenance and repair.
  • Patented porting design allows complete venting of process fluids before start-up for easy installation commissioning, not trapping unwanted liquid or gas process fluids.
