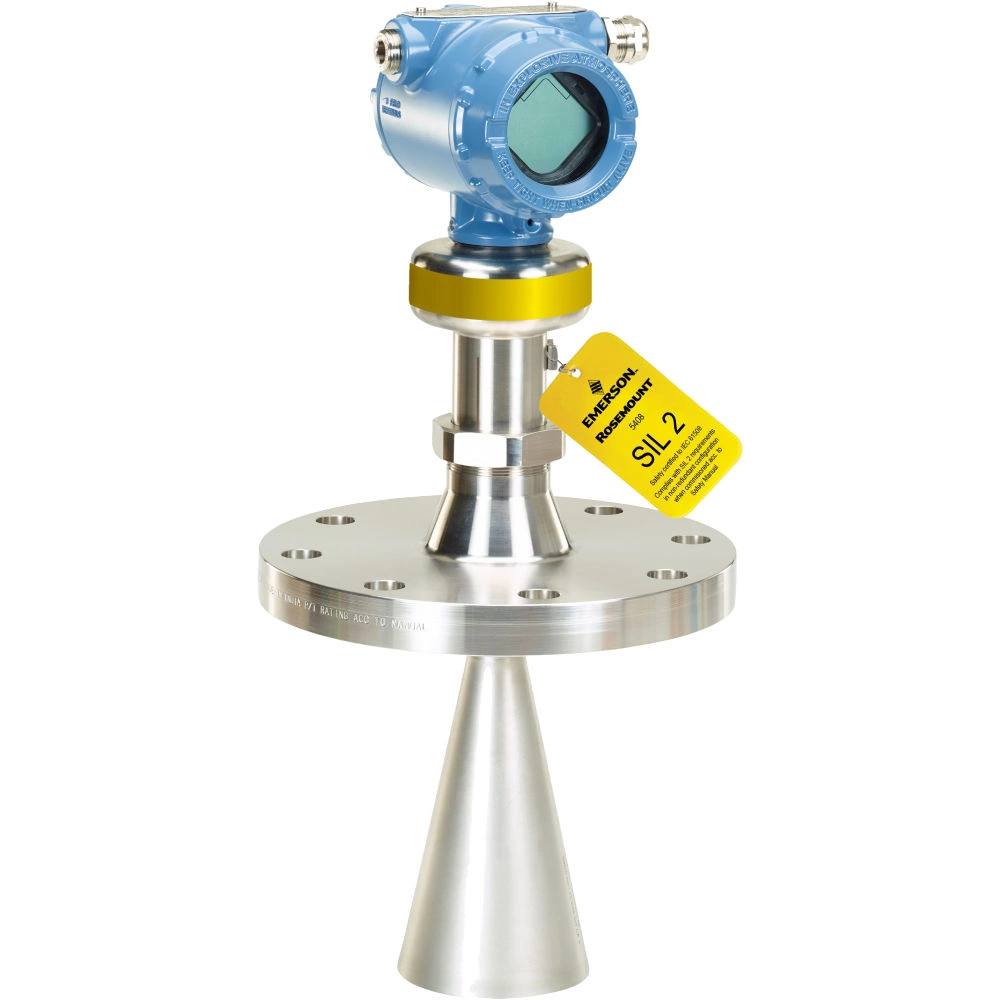

Rosemount™ 5408 Level Transmitter - Non-Contacting Radar

Accurate level measurement in pressurized vessels, vacuum applications, and other demanding process environments requires radar technology designed to handle changing process conditions. The Rosemount™ 5408 Non-Contacting Radar Level Transmitter delivers reliable measurements in challenging applications involving vacuum, pressure variations, turbulence, foam, condensation, and low-dielectric media.

1.Selecting the right radar level transmitter depends on factors such as process conditions, tank design, measurement requirements, hazardous area approvals, and safety objectives. Many chemical storage applications can be addressed with versatile non-contacting radar solutions such as the Rosemount™ 3408, which combines ease of use with reliable performance. For applications involving more demanding process conditions, difficult media, or critical measurement requirements, advanced solutions such as the Rosemount™ 5408 provide enhanced measurement performance and reliability. Emerson's broad non-contacting radar portfolio allows users to select the solution that best fits their application requirements.

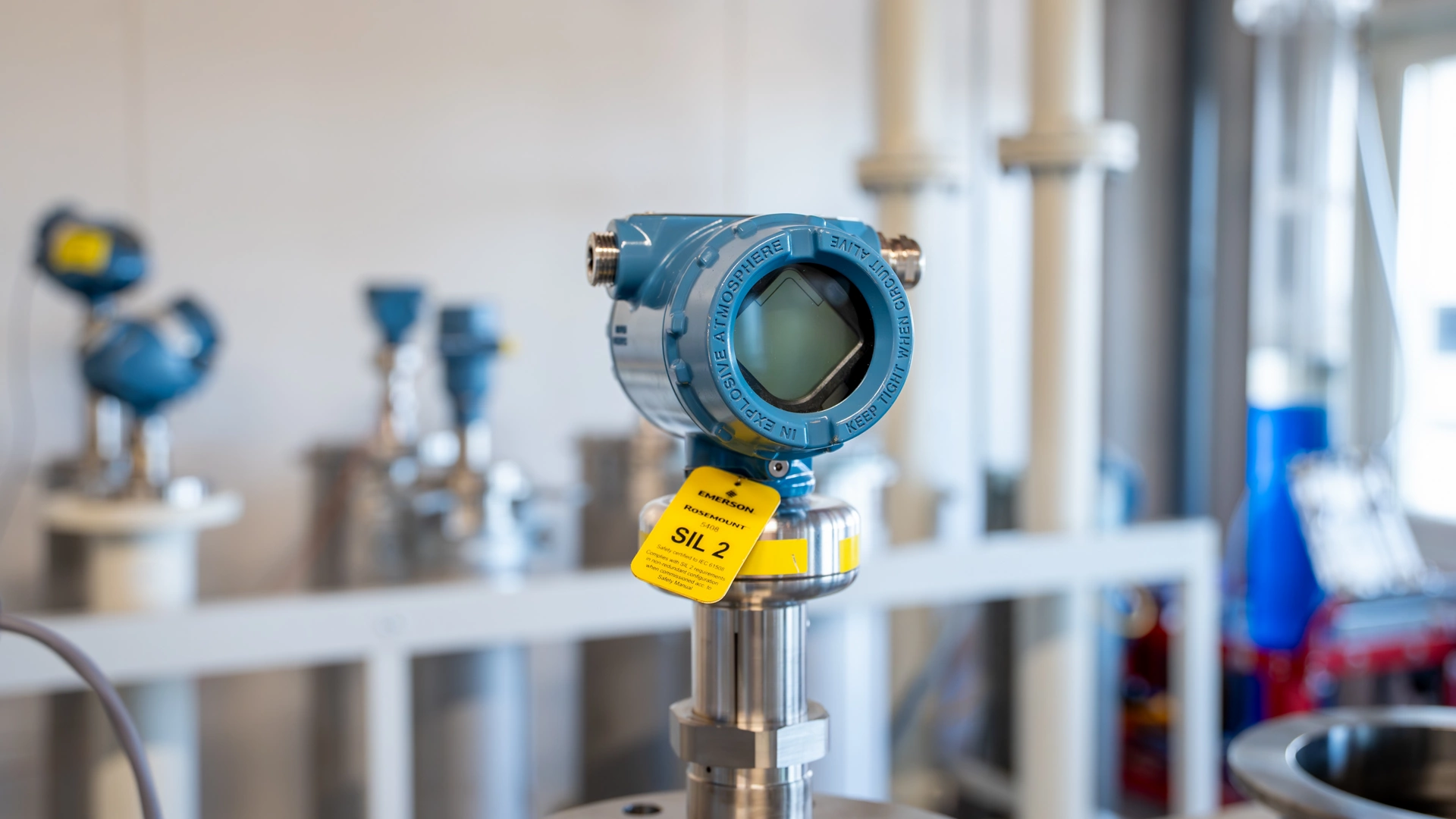

1.When selecting a radar level transmitter for hazardous areas, organizations should consider both hazardous location approvals and functional safety requirements. Certifications such as ATEX, IECEx, FM, and CSA may be required depending on the installation location, while IEC 61508 and SIL certifications are often important for safety-related applications. Beyond certifications, it is also important to evaluate measurement reliability under actual operating conditions. Radar transmitters designed for demanding applications, such as the Rosemount™ 5408, combine industry-recognized safety certifications with robust measurement performance to help support safe and reliable operation in critical processes.

The main difference between 26 GHz FMCW radar and higher-frequency radar technologies is that higher frequencies typically provide a narrower beam angle, which can be beneficial in vessels with obstructions or complex geometries. At the same time, 26 GHz radar can offer improved sensitivity in some challenging media, helping maintain reliable measurements in demanding applications. However, measurement performance depends on more than frequency alone. In many applications, measurement reliability depends just as much on signal processing capabilities, echo handling, antenna design, and overall transmitter design as it does on frequency.

Measurement issues are often caused by process conditions rather than the radar technology itself. Common challenges include false echoes from internal obstructions, condensation buildup, foam, dust, turbulence, agitation, and low-dielectric media. Preventing these issues starts with selecting the right measurement technology, antenna design, and installation location for the application. Advanced radar transmitters such as the Rosemount™ 5408 use technologies like Smart Echo Supervision™ to distinguish true level signals from interference, helping maintain reliable measurements even when process conditions change.

The Rosemount 5408 offers a wide range of antenna options to suit different vessel types and process requirements, including cone antennas, process seal antennas, hygienic designs, and parabolic antennas. Different applications often require different antenna designs to optimize radar performance. Depending on the vessel geometry, process conditions, hygienic requirements, or measuring range, the ability to select the appropriate antenna can significantly improve measurement reliability and simplify installation.

A configurable radar level transmitter simplifies standardization by enabling the same platform to be used across multiple applications while reducing engineering effort, training, spare parts inventory, and maintenance requirements. The Rosemount™ 5408 Non-Contacting Radar Level Transmitter offers the flexibility to adapt to different application needs through a range of antenna options, process connections, approvals, and measurement capabilities.

Yes, the Rosemount™ 5408 Non-Contacting Radar Level Transmitter is suitable for hygienic and sanitary applications in industries such as life sciences. Its non-contacting design helps protect product quality, and it is available with a process seal antenna featuring all-PTFE wetted parts and an FDA- and 3-A-approved Tri-Clamp hygienic connection. Smart Meter Verification also enables transmitter verification without process interruption, helping support maintenance and quality requirements.

The Rosemount™ 5408 Non-Contacting Radar Level Transmitter is not available with native WirelessHART® technology, but it can be paired with an Emerson Wireless 775 THUM™ Adapter to provide WirelessHART® connectivity. For applications requiring a native wireless radar solution, the Rosemount™ 3408 Wireless Non-Contacting Radar Level Transmitter is available.

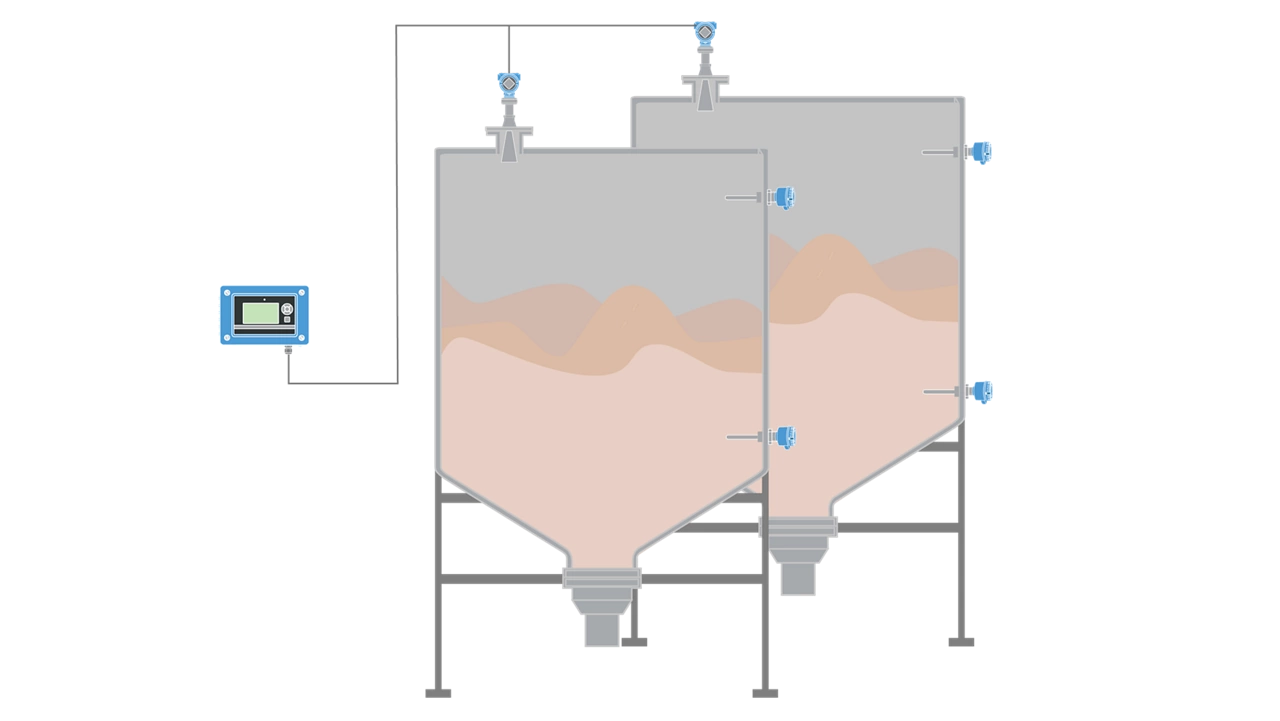

The best practice for measuring solids in silos, bins, and bulk storage vessels is to select a level measurement technology that matches the material characteristics, vessel dimensions, process conditions, and measuring range requirements. For demanding solids applications involving tall silos, long measuring ranges, large particles, or pellets, the Rosemount 5408 Non-Contacting Radar Level Transmitter provides reliable continuous level measurement and inventory monitoring.

Modern radar level transmitters offer a range of tools to help users verify device health, validate measurement performance, and simplify maintenance activities. For example, the Rosemount 5408 Non-Contacting Radar Level Transmitter includes diagnostic capabilities such as Smart Meter Verification, Signal Quality Metrics, Proof Test Wizards, Historian, and Smart Echo Level Test, helping users assess transmitter performance and identify potential issues before they impact operations.

In addition, advanced echo-processing technologies such as Smart Echo Supervision™ help maintain measurement reliability by distinguishing true level surface signals from false echoes created by internal obstructions, or inconveniently placed nozzles.
