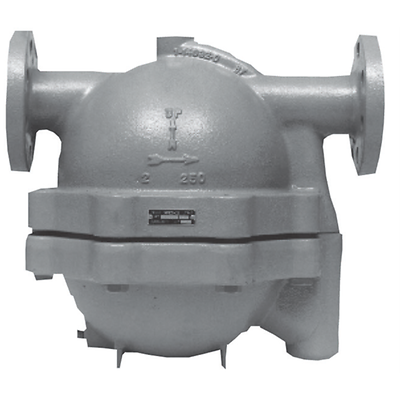

Yarway FXT Leverless Float & Thermostatic Steam Traps
Product Description
Yarway FXT Series Leverless Float & Thermostatic Steam Traps are designed for low to medium pressure steam applications, including unit heaters, heat exchangers, dryers, jacketed vessels and other applications where continuous drainage is essential.
Specifications
- Technology
- Mechanical (Leverless Float & Thermostatic)
- Size
- NPS 1/2, 3/4, 1, 1-1/2, 2 / DN 15, 20, 25, 40, 50
- Maximum Temperature
- 750F / 400C
- Maximum Pressure
- 650 psi / 44.8 bar
- Capacity
- Up to 22,450 lb/hr / 10,183 kg/hr
- Connections
- NPT, SWE, BSPT, 250RF, 300RF, 600RF
- Materials
- Cast Iron or Carbon Steel
Features
- All Stainless Steel Internal Components - Hardened valves and seats. Extra long life and dependable service. Resists water hammer. Protects against erosion and corrosion.
- Erosion Proof - Discharge passage is protected with a stainless steel liner.
- Integral Strainer - Stainless Steel screen prevents dirt problems. Blow-down connection provided.
- Thermostatic Air Vent - Provided with balanced pressure element for immediate and complete air venting.
- Variable Orifice - Condensate is discharged continuously through the seat ring which is modulated by the float. This provides a smooth, even flow without high velocity or steam entrainment.
- SLR Orifice - Optional continuous bleed prevents flash steam lockup when it is impossible to install trap at low point in system.
