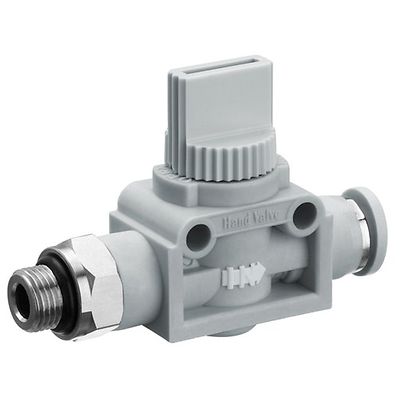

AVENTICS™ Series QR1-AGS R412005471

Type

Poppet valve

Medium

Compressed air

Compressed air connection 1

G 1/8

Compressed air connection type 1

External thread

Compressed air connection 2

Ø 8

Compressed air connection type 2

push-in fitting

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Min. medium temperature

-20 °C

Max. medium temperature

80 °C

Working pressure min.

-1 bar

Working pressure max

16 bar

Nominal flow Qn 1 to 2

550 l/min

Delivery unit

5 piece

Weight

0.033 kg

Housing material

Polyamide

Seal material

Acrylonitrile butadiene rubber

Material release ring

Polyamide

Material hand lever

Polyamide
