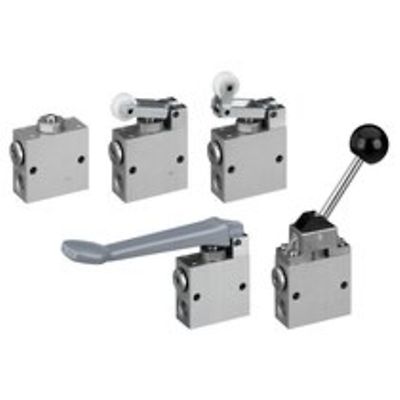

AVENTICS™ 3/2-directional valve, Series AP 0820400005

Activation

Mechanical

Nominal flow Qn

550 l/min

Switching principle

3/2

Compressed air connection output

G 1/4

Working pressure min.

0 bar

Working pressure max

10 bar

Actuating element

Lever

Type

Poppet valve

Plate connection

Pipe connection

Min. ambient temperature

-30 °C

Max. ambient temperature

80 °C

Min. medium temperature

-30 °C

Max. medium temperature

80 °C

Medium

Compressed air

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

5 mg/m³

Max. particle size

5 µm

Compressed air connection type

Internal thread

Compressed air connection input

G 1/4

Compressed air connection, exhaust

G 1/4

Weight

0.27 kg

Housing material

Aluminum

Seal material

Acrylonitrile butadiene rubber

Material actuating control

Polyamide, Steel
