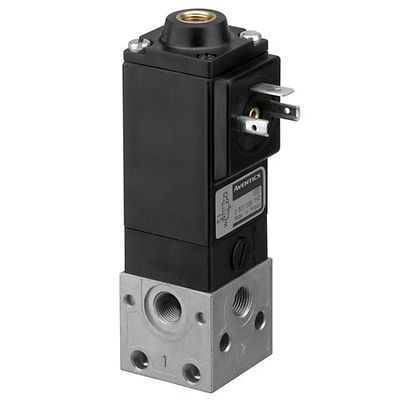

AVENTICS™ 3/2-directional valve, Series DO35, G1/8, NC, Single valve 0820005102

Activation

Electrically

Frame size

DO35

Switching principle

3/2, with spring return

Valve function

NC

Manual override

with detent

Nominal flow Qn

140 l/min

Compressed air connection

G 1/8

Compressed air connection output

G 1/8

Min. working pressure

0 bar

Max. working pressure

10 bar

Operational↩voltage

110 V AC

Electrical connection type

Plug

Electrical connection size

EN 175301-803, form A

Protection class with connection

IP65

Sealing principle

Soft seal

Duty cycle

100%

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Housing material

Die cast zinc
