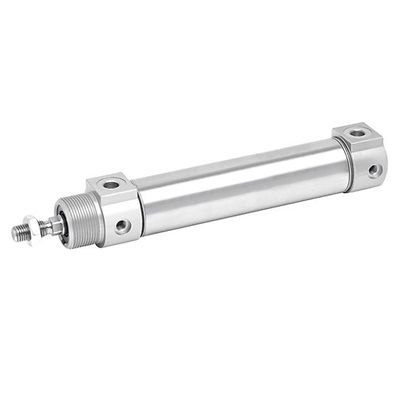

AVENTICS™ Round cylinder, Series RPC R412020647

Type

Version: short type

Piston Ø

32 mm

Stroke

250 mm

Functional principle

Double-acting

Cushioning

Elastic cushioning

Magnetic piston

Piston with magnet

Environmental requirements

Industry standard, ATEX optional

Piston rod

single

Scraper

Standard

Pressure for determining piston forces

6,3 bar

Retracting piston force

435 N

Extracting piston force

505 N

Min. ambient temperature

-20 °C

Max. ambient temperature

80 °C

Working pressure min.

1 bar

Working pressure max

10 bar

Ports

G 1/8

Piston rod thread

M10x1,25

Impact energy

0.8 J

Weight 0 mm stroke

0.3 kg

Weight +10 mm stroke

0.015 kg

Stroke max.

1200 mm

Medium

Compressed air

Min. medium temperature

-20 °C

Max. medium temperature

80 °C
