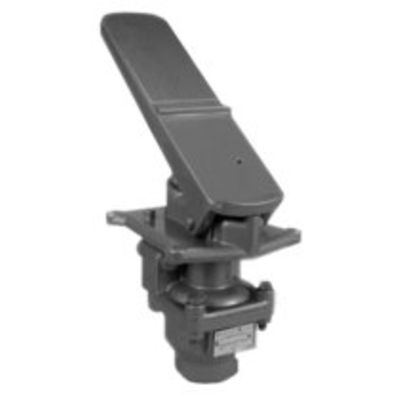

AVENTICS™ Series H-Controlair® R431002617

Type

Poppet valve

Actuating element

Pedal

Compressed air connection input

1/4 NPT

Compressed air connection type input

Internal thread

Compressed air connection output

1/4 NPT

Compressed air connection type output

Internal thread

Working pressure min.

0.1 bar

Working pressure max

14 bar

Regulation range min.

0.1 bar

Regulation range max.

2 bar

Min. ambient temperature

-40 °C

Max. ambient temperature

70 °C

Min. medium temperature

-40 °C

Max. medium temperature

70 °C

Medium

Compressed air

Nominal flow Qn

900 l/min

Hysteresis

< 0,1 bar

actuating force min.

90 N

Weight

2.3 kg

Housing material

Die-cast aluminum

Seal material

Acrylonitrile butadiene rubber

Material pedal

Die-cast aluminum
