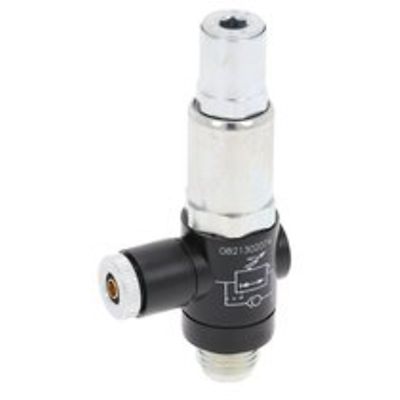

AVENTICS™ Pressure regulator 0821302072

Type

Poppet valve

Compressed air connection input

G 1/8

Compressed air connection type input

plug-in with tube nut

Compressed air connection output

Ø 4

Compressed air connection type output

External thread

Working pressure min.

1 bar

Working pressure max

16 bar

Regulation range min.

1 bar

Regulation range max.

8 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

70 °C

Min. medium temperature

-10 °C

Max. medium temperature

70 °C

Medium

Compressed air

Qn 1▶2

600 l/min

Weight

0.1 kg

Housing material

Brass, Polyamide

Seal material

Acrylonitrile butadiene rubber
