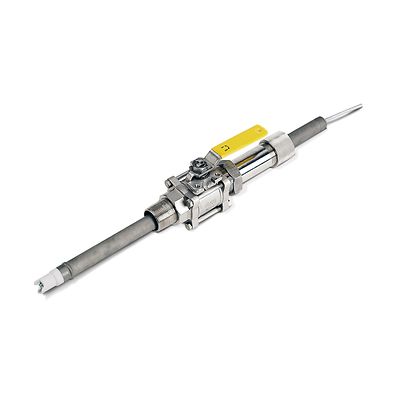

Rosemount-396R Retractable pH ORP Sensor

Rosemount™ 396R pH/ORP Sensor

Configure
Request Quote
ADD TO WORKSPACE

Product Description

The Rosemount 396R pH Sensor / ORP Sensor, with integral cable, is specifically designed for improved life in harsh, dirty applications where a separate sample stream is difficult to provide and greater insertion depths are required. This pH/ORP sensor is designed for use with a 1-1/4 in. or 1-1/2 in. ball valve for tap installation.

Specifications

Measurement Range
pH sensor: 0 to 14
ORP sensor: -1500 to 1500 mV
Operating Pressure
Hemi-bulb: 0 to 150 psig (0 to 10.34 barg)
Flat-bulb: 0 to 100 psig (0 to 6.89 barg)
Max Operating Pressure
(at retraction or insertion)
21 in. tube 64 psig (4.41 barg)
36 in. tube 35 psig (2.41 barg)
Operating Temperature
32 - 212 °F (0 -100 °C)
Process Wetted Materials
Titanium, polypropylene, EPDM, glass, platinum (ORP sensor only)

Features

  • Minimum maintenance due to robust reference technology helps ensure a steady signal when pH sensor / ORP sensor is coated
  • Retractable design for use with ball valve assemblies
  • Versatile mounting options feature either a 21" or 3" titanium tube sensor length
  • Helical reference pathway hinders reference poisoning for a long pH/ORP sensor life
  • Enhanced performance and increased pH/ORP sensor life with cracking resistant glass

Documents & Drawings

Parts & Accessories

Search
1-10 of 13 results for Parts & Accessories
:
2002565
Rosemount™ Mounting Bracket Kit
Item Type
Mounting Bracket
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Mounting Bracket
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23240-00
Rosemount™ Ball Valve Assembly, 316 Stainless Steel, 1.5" (Process connector required)
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23765-00
Rosemount™ 1.25" Ball Valve Assembly
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
9210013
Rosemount™ Buffer Solution, pH 6.86, 16 oz
Item Type
Refills & Solutions
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Refills & Solutions
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23557-00
Rosemount™ Preamplifier for Remote Weatherproof Junction Box
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
9210014
Rosemount™ Buffer Solution, pH 9.18, 16 oz
Item Type
Refills & Solutions
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Refills & Solutions
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23166-00
Rosemount™ Connector, 1" x 1" 316 SS, with O-ring Groove
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23594-01
Rosemount™ O-Ring, 2-214, EPDM, QTY 4, With Lube (For Process Connector PN 23166-01)
Item Type
Gaskets & O-Rings
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Gaskets & O-Rings
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23166-01
Rosemount™ Connector, 1" x 1" Titanium, with O-ring Groove
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23709-00
Rosemount™ Junction Box, Sensor Head With Preamplifier For 54/3081
Item Type
Electronics & Cover
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Electronics & Cover
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
1
1 2
1-10 of 13 results
