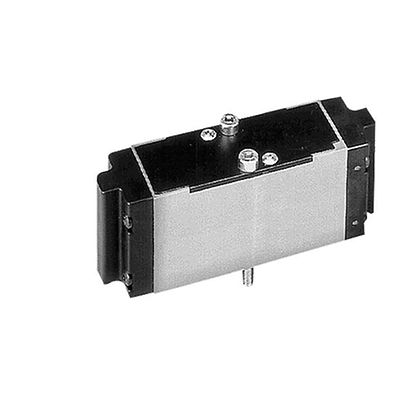

AVENTICS™ 5/3-directional valve, CD01-PA 5714003820

Activation

Pneumatically

Nominal flow Qn

650 l/min

Compressed air connection output

base plate DIN ISO 15407-1

Connection type

Plate connection

Working pressure min.

-0.95 bar

Working pressure max

16 bar

Sealing principle

Soft Seal

ATEX

suitable for ATEX

Certificates

Free of substances that impair surface wetting in the coating process

Standards

ISO 15407-1

Valve type

Spool valve, positive overlapping

Version

26 mm

Control pressure min.

3 bar

Control pressure max.

16 bar

Min. ambient temperature

-15 °C

Max. ambient temperature

50 °C

Min. medium temperature

-15 °C

Max. medium temperature

50 °C

Medium

Compressed air

Max. particle size

50 µm

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

5 mg/m³

version pneumatic port

Closed Center

Compressed air connection input

base plate DIN ISO 15407-1

Nominal flow Qn 1 to 2

650 l/min
