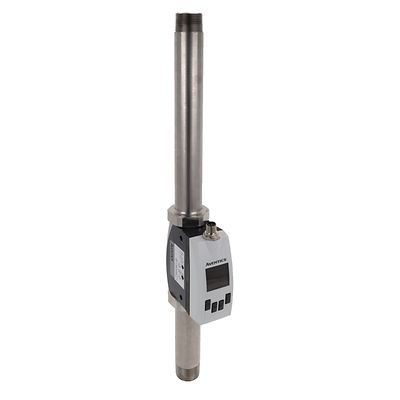

AVENTICS™ AF2 series flow rate sensor, Ethernet 8652AV004JA0010
AVENTICS™ AF2 series flow rate sensor, Ethernet 8652AV004JA0010
Warning
Taking this action may invalidate your quote. Do you wish to proceed? Proceeding will convert your shopping cart into a standard order so that you can make changes.
Taking this action may invalidate your quote. Do you wish to proceed? Proceeding will convert your shopping cart into a standard order so that you can make changes.
+/-3% of the measured value +0.3% of the measurement range final value* +/-8% of the measured value + 1% of the measurement range final value** For 1,5" and 2" sized versions: +/-6% of measured value +0,6% …* +/-8% of measured value +0,8% ...**
Repeatability
± 1.5% of the measured value
Temperature range
-20 to 60 °C / -4 to 140 °F
Operating voltage
For IO-Link: 17 to 30 V DC For Ethernet: PoE (IEEE802.3af) typ. 45 VDC
Protection class
IP65 and IP67 (EN 60529) with approved connection cable
* Standard measurement range ** Extended measurement range
