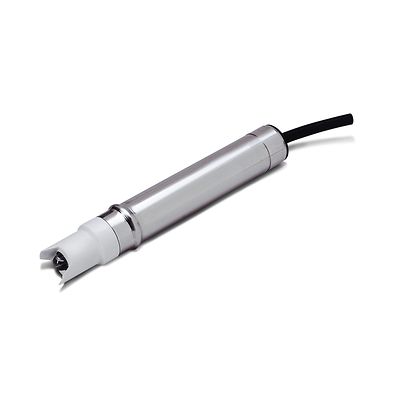

Rosemount-398 pH ORP Sensor

Rosemount™ 398 pH/ORP Sensor

Configure
Request Quote
ADD TO WORKSPACE

Product Description

The Rosemount 398 pH Sensor / ORP Sensor, with integral cable, features a chemical-resistant construction of Tefzel™ and titanium. This pH/ORP sensor is ideal for measuring pH in harsh process liquids and can be used to measure pH levels in sour water strippers, pulp bleaching towers that use chlorine dioxide, and process streams containing a variety of organic solvents.

Specifications

Measurement Range
pH sensor: 0 to 14
ORP sensor: -1500 to +1500 mV
Temperature Range
32 to 212 °F (0 to 100 °C)
Pressure Range
Hemi Bulb - 0 to 250 psig (100 to 1825 kPa [abs])
Flat Bulb - 0 to 100 psig (100 to 790 kPa [abs])
Materials of Construction
Wetted Materials: Titanium, Tefzel™, glass, and a choice of Kalrez®, Viton™, or EPDM; platinum for ORP sensor only

Features

  • pH sensor / ORP sensor has superior chemical resistance and can withstand applications containing chlorine dioxide and a wide variety of organic solvents and oxidizing agents
  • Minimum maintenance due to reference junction technology ensures long pH/ORP sensor life in coating, fouling, and poisoning processes
  • Maximum pH/ORP sensor life due to helical reference pathway which hinders reference poisoning

Documents & Drawings

Parts & Accessories

Search
1-10 of 14 results for Parts & Accessories
:
2002011
Rosemount™ CPVC Flow Through Tee, 1-1/2" NPT Process Connection
Item Type
Adapters & Fittings
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Adapters & Fittings
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23166-00
Rosemount™ Connector, 1" x 1" 316 SS, with O-ring Groove
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
23166-01
Rosemount™ Connector, 1" x 1" Titanium, with O-ring Groove
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
2002565
Rosemount™ Mounting Bracket Kit
Item Type
Mounting Bracket
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Mounting Bracket
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
9210013
Rosemount™ Buffer Solution, pH 6.86, 16 oz
Item Type
Refills & Solutions
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Refills & Solutions
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
24091-00
Rosemount™ Cell, Low Flow, .25" inlet and outlet
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
9210014
Rosemount™ Buffer Solution, pH 9.18, 16 oz
Item Type
Refills & Solutions
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Refills & Solutions
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
33893-00
Rosemount™ Nut, low flow cell
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
9550220
Rosemount™ O-Ring, FFKM 2-214, For Process Connector
Item Type
Gaskets & O-Rings
Measurement Type
Liquid Analysis
Product Type
Spare Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Gaskets & O-Rings
Liquid Analysis
Spare Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
33898-00
Rosemount™ Cell, low flow molded
Item Type
Measurement Type
Liquid Analysis
Product Type
Accessories & Parts
Family
Liquid Analysis
availability
Item Type
Measurement Type
Product Type
Family
Liquid Analysis
Accessories & Parts
Liquid Analysis
ADD TO CART
ADD TO WORKSPACE
1
1 2
1-10 of 14 results
