Asco-P-317

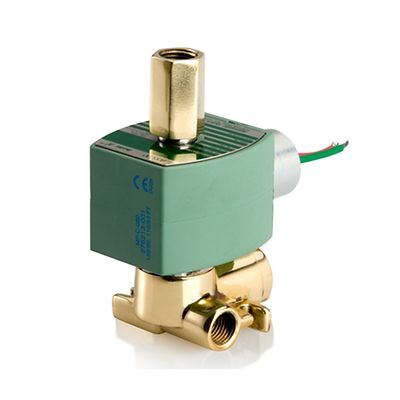

ASCO™ Series 317 Quick-Exhaust Solenoid Valves

Contact Us
Consult an Expert

Product Description

The ASCO Series 317 is a line of solenoid valves designed for quick venting to 0 psi through the exhaust orifice to quickly shift control valves. The valves are available in low-power, intrinsically safe, voltage-ranging, and harsh environment constructions. The 317 Series is suitable for a wide variety of applications such as automotive, analytic and diagnostic instruments, biofuels, dust collector systems, and heating equipment.

Products

Search
1-5 of 5 results for Products
:
VCEFBM8317G035DC24/DCD
ASCO™ VCEFBM8317G035DC24/DCD
Coil Class
FT
Product Type
Solenoid Valve
Wattage
11.6 W
Quickship Available
QuickShip Everyday
availability
10 Day
Coil Class
Product Type
Wattage
Quickship Available
availability
FT
Solenoid Valve
11.6 W
QuickShip Everyday
10 Day
QuickShip
ADD TO WORKSPACE
VCEFBM8317G307DC24/DCD
ASCO™ VCEFBM8317G307DC24/DCD
Coil Class
F
Product Type
Solenoid Valve
Wattage
1.4 W
Quickship Available
QuickShip Everyday
availability
10 Day
Coil Class
Product Type
Wattage
Quickship Available
availability
F
Solenoid Valve
1.4 W
QuickShip Everyday
10 Day
QuickShip
ADD TO WORKSPACE
VCEFCM8317G308DC24/DCD
ASCO™ VCEFCM8317G308DC24/DCD
Coil Class
F
Product Type
Solenoid Valve
Wattage
1.4 W
Quickship Available
QuickShip Everyday
availability
10 Day
Coil Class
Product Type
Wattage
Quickship Available
availability
F
Solenoid Valve
1.4 W
QuickShip Everyday
10 Day
QuickShip
ADD TO WORKSPACE
VCEFCMX8317G03524062AC120/60,110/50D
ASCO™ VCEFCMX8317G03524062AC120/60,110/50D
Coil Class
FT
Product Type
Solenoid Valve
Wattage
10.1 W
Quickship Available
QuickShip Everyday
availability
10 Day
Coil Class
Product Type
Wattage
Quickship Available
availability
FT
Solenoid Valve
10.1 W
QuickShip Everyday
10 Day
QuickShip
ADD TO WORKSPACE
VCEFCMX8317G05424047AC120/60,110/50D
ASCO™ VCEFCMX8317G05424047AC120/60,110/50D
Coil Class
FT
Product Type
Solenoid Valve
Wattage
10.1 W
Quickship Available
QuickShip Everyday
availability
10 Day
Coil Class
Product Type
Wattage
Quickship Available
availability
FT
Solenoid Valve
10.1 W
QuickShip Everyday
10 Day
QuickShip
ADD TO WORKSPACE
1-5 of 5 results

Specifications

Valve Actuation
Solenoid - Air Pilot
Body Material
Brass, Stainless Steel
Media
Air, Inert Gas, Light Oil, Water
Pipe / Port Size
1/4 "; 3/8 "
Port Type
NPTF
Function
3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open
Flow
From 0.1 Cv to 0.5 Cv, From 0.5 Cv to 1.0 Cv, From 1.0 Cv to 2.0 Cv, From .2 to .43 Kv, From .43 to .86 Kv, From .86 to 1.73 Kv
Voltage
24 AC, 110 AC, 480 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 DC, 12 to 24 DC Voltage Ranging, 24 to 120 AC/DC Voltage Ranging, 100 to 240 AC/DC Voltage Ranging, 125 DC Battery Charging | 50, 50/60, 60
Max Differential / Max Operating Pressure
Vacuum to 150 PSIG, 150-500 PSIG
Operating Environment
Hazardous, Indoor, Outdoor
Standards / Regulations
Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL, ATEX Zone 0-20, Class I Div 1, Class I Div 2, CSA, IEC Ex Zone 0-20

Features

  • RedHat Next Generation version uses electronics technology to manage power, providing less energy consumption and enhanced pressure and flow ratings
  • Low-power model has one-piece solenoid with highly efficient solenoid cartridge and special low-wattage coil. Designed for automotive automation applications with PLC compatibility
  • Resilient seated poppets for tight shutoff
  • Mountable in any position for easy installation
