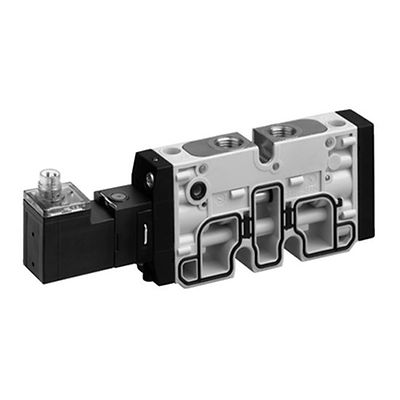

AVENTICS™ 5/2-directional valve, Series TC08 0820060896

Activation

Electrically

Nominal flow Qn

800 l/min

Switching principle

5/2

Compressed air connection output

G 1/8

Working pressure min.

-0.9 bar

Working pressure max

10 bar

DC operating voltage

24 V

Voltage tolerance DC

-10% / +10%

Manual override

without detent

Electrical connection type

Plug

Electrical connection size

M8

Electrical connection number of poles

4-pin

Actuating control

Single Solenoid

Sealing principle

Soft Seal

Pilot

External

Pilot valve width

15 mm

Valve type

Spool valve, positive overlapping

Connection type

Pipe connection, Plate connection

Return

with air spring return

Blocking principle

Plate principle

Can be assembled into blocks

Can be assembled into blocks

Control pressure min.

2.5 bar

Control pressure max.

10 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C
