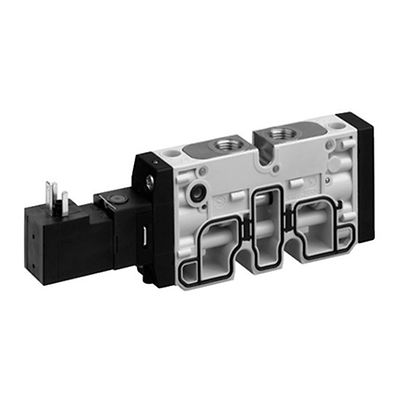

AVENTICS™ 5/2-directional valve, Series TC08 0820060761

Activation

Electrically

Nominal flow Qn

800 l/min

Switching principle

5/2

Compressed air connection output

G 1/8

Working pressure min.

-0.9 bar

Working pressure max

10 bar

DC operating voltage

24 V

Voltage tolerance DC

-10% / +10%

Manual override

with detent

Electrical connection type

Plug

Electrical connection size

ISO 15217, form C

Actuating control

Single Solenoid

Sealing principle

Soft Seal

Pilot

External

Pilot valve width

15 mm

Valve type

Spool valve, positive overlapping

Connection type

Pipe connection, Plate connection

Return

with spring/air spring return

Blocking principle

Plate principle

Can be assembled into blocks

Can be assembled into blocks

Control pressure min.

3 bar

Control pressure max.

10 bar

Min. ambient temperature

-10 °C

Max. ambient temperature

50 °C

Min. medium temperature

-10 °C
