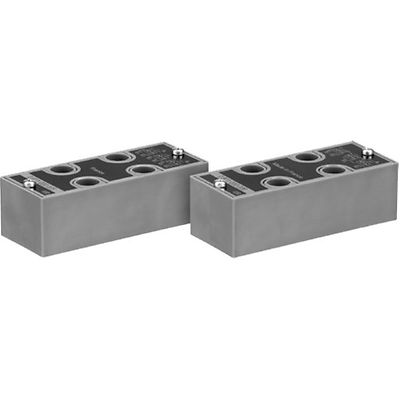

AVENTICS™ OR unit 0821000005

Sealing principle

Soft Seal

Type

Poppet valve

Medium

Compressed air

Max. particle size

1 µm

Min. ambient temperature

0 °C

Max. ambient temperature

80 °C

Min. medium temperature

0 °C

Max. medium temperature

80 °C

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

1 mg/m³

Logic function

Shuttle valves (OR)

Connection type

Plate valve with pipe connection

Nominal flow Qn

80 l/min

Working pressure min.

1 bar

Working pressure max

10 bar

Weight

0.03 kg

Housing material

Polyamide

Seal material

Acrylonitrile butadiene rubber
