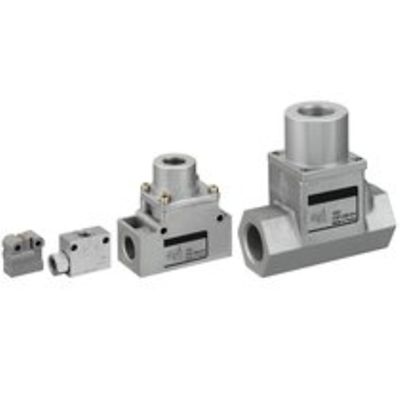

AVENTICS™ Shuttle valves (OR) 0821000004

Sealing principle

Soft Seal

Type

Poppet valve

Medium

Compressed air

Max. particle size

5 µm

Min. ambient temperature

0 °C

Max. ambient temperature

80 °C

Min. medium temperature

0 °C

Max. medium temperature

80 °C

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

1 mg/m³

Logic function

Shuttle valves (OR)

Connection type

Pipe connection

Compressed air connection input

M5

Compressed air connection output

M5

Nominal flow Qn

80 l/min

Working pressure min.

1 bar

Working pressure max

10 bar

Weight

0.011 kg

Housing material

Polyamide

Seal material

Acrylonitrile butadiene rubber

Material threaded bushing

Brass
