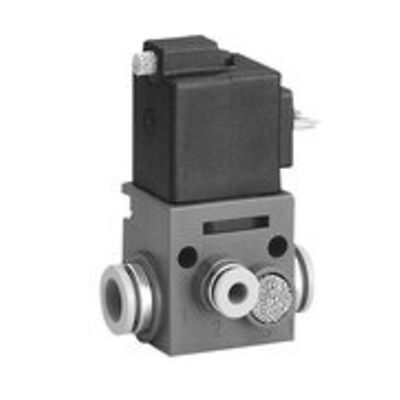

AVENTICS™ 3/2-directional valve, Series 490 5724970220

Activation

Electrically

Switching principle

3/2

Version

NC

Compressed air connection output

Ø 4

Working pressure min.

4 bar

Working pressure max

7 bar

DC operating voltage

24 V

Voltage tolerance DC

-20% / +20%

Electrical connection type

Plug

Electrical connection size

ISO 15217, form C

Actuating control

Single Solenoid

Sealing principle

Soft Seal

Pilot

Internal

Valve type

Poppet valve

Connection type

Pipe connection

Return

With spring return

Min. ambient temperature

-15 °C

Max. ambient temperature

50 °C

Min. medium temperature

-15 °C

Max. medium temperature

50 °C

Medium

Compressed air

Max. particle size

5 µm

Oil content of compressed air min.

0 mg/m³

Oil content of compressed air max.

1 mg/m³

Compressed air connection input

Ø 8
