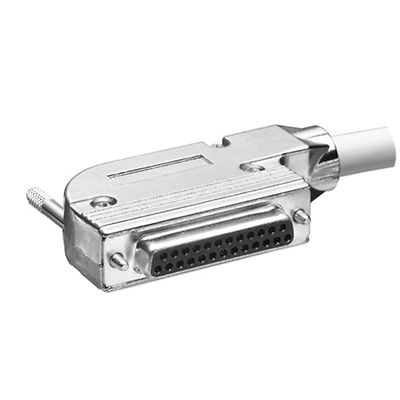

AVENTICS™ Multipole plug, series CON-MP R402000782

Type

Multipole

Cable

with cable

Operating voltage AC max.

24 V DC

Electrical connection 1

Socket

Electrical connection 1

D-Sub

Electrical connection 1

25-pin

Cable exit

angled

Cable exit angle

90°

Electrical connection 2

open cable ends

Electrical connection 2

25-pin

Number of wires

25

Shielding

unshielded

Cable length

3 m

suitable for dynamic laying

suitable for dynamic laying

Protection class

IP20

Min. ambient temperature

-5 °C

Max. ambient temperature

50 °C

Max. current

3 A

Wire cross-section

0.25 mm²

Cable-Ø

10.1 mm

Weight

0.487 kg

Housing material

metal

Material cable sheath

Polyvinyl chloride
